All Diesel Care and Performance products carry a one year warranty. Additional warranty coverage is available for purchase prior to and after sale. Diesel Care and Performance suggests fully reading and understanding the terms and conditions of our warranty policy prior to purchase and installation.
REPLACES:
HONDA 31200-463-008, 31200-463-405
MITSUBA SM224
UNIT TYPE: MITSUBA
TYPE: PMDD
VOLTAGE: 12 VOLTS
ROTATION: CWTEETH/SPLINES: 31 TEETH/SPLINES
PINION/SPLINES OD: 13.6MM / 0.535IN
MOUNTING HOLE 1: 6.6MM ID UNTHREADED
MOUNTING HOLE 2: 6.6MM ID UNTHREADED
APPROXIMATE WEIGHT: 5.575 LBS / 2.53 KG
NOTES: MOUNTING HOLE #2 IS OBLONG AT 6.6MM X 13.1MM
APPLICATIONS:
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
HONDA MOTORCYC. GL1100 GOLD WING 82-80 1084CC MITSUBA SYSTEM
HONDA MOTORCYC. GL1100A GOLD WING ASPENCADE 83-82 1084CC MITSUBA SYSTEM
HONDA MOTORCYC. GL1100I GOLD WING INTERSTATE 83-80 1084CC MITSUBA SYSTEM
HONDA 31200-463-008, 31200-463-405
MITSUBA SM224
UNIT TYPE: MITSUBA
TYPE: PMDD
VOLTAGE: 12 VOLTS
ROTATION: CWTEETH/SPLINES: 31 TEETH/SPLINES
PINION/SPLINES OD: 13.6MM / 0.535IN
MOUNTING HOLE 1: 6.6MM ID UNTHREADED
MOUNTING HOLE 2: 6.6MM ID UNTHREADED
APPROXIMATE WEIGHT: 5.575 LBS / 2.53 KG
NOTES: MOUNTING HOLE #2 IS OBLONG AT 6.6MM X 13.1MM
APPLICATIONS:
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
HONDA MOTORCYC. GL1100 GOLD WING 82-80 1084CC MITSUBA SYSTEM
HONDA MOTORCYC. GL1100A GOLD WING ASPENCADE 83-82 1084CC MITSUBA SYSTEM
HONDA MOTORCYC. GL1100I GOLD WING INTERSTATE 83-80 1084CC MITSUBA SYSTEM

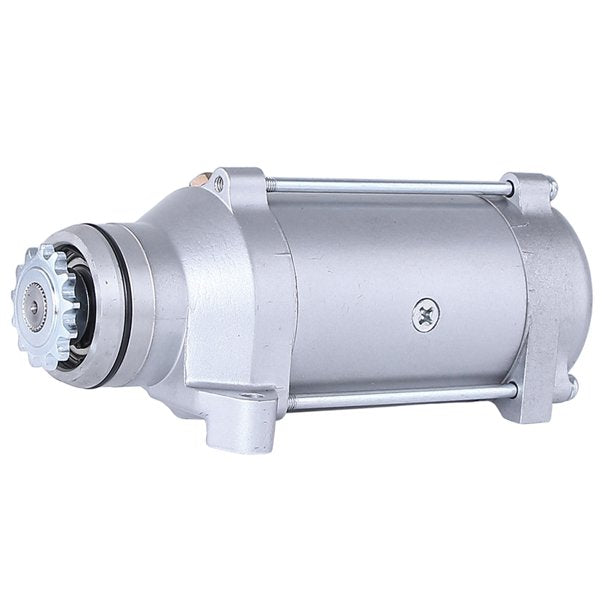

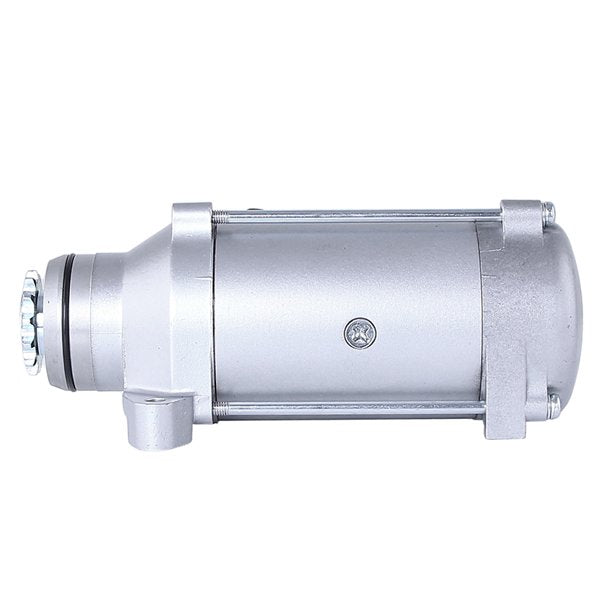

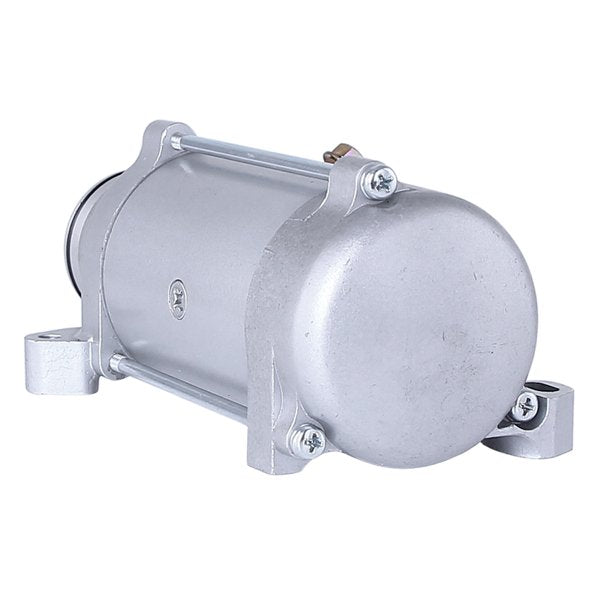

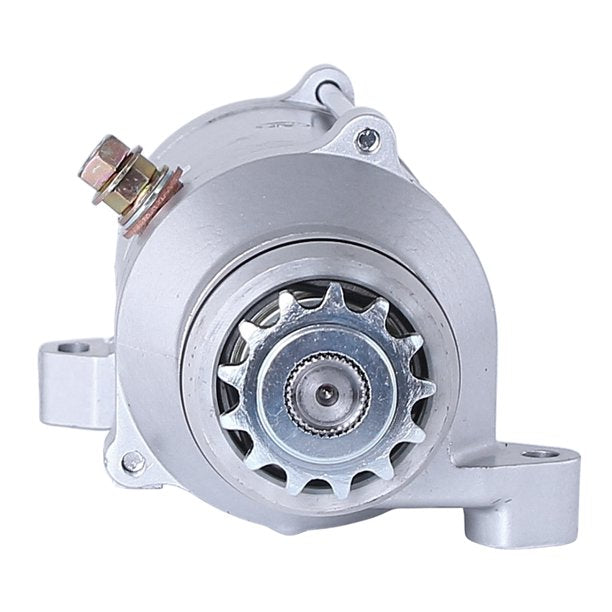

STARTER FITS HONDA GOLDWING GL1100 GL1100A GL1100I 31200-463-008 31200-463-405 SM224
