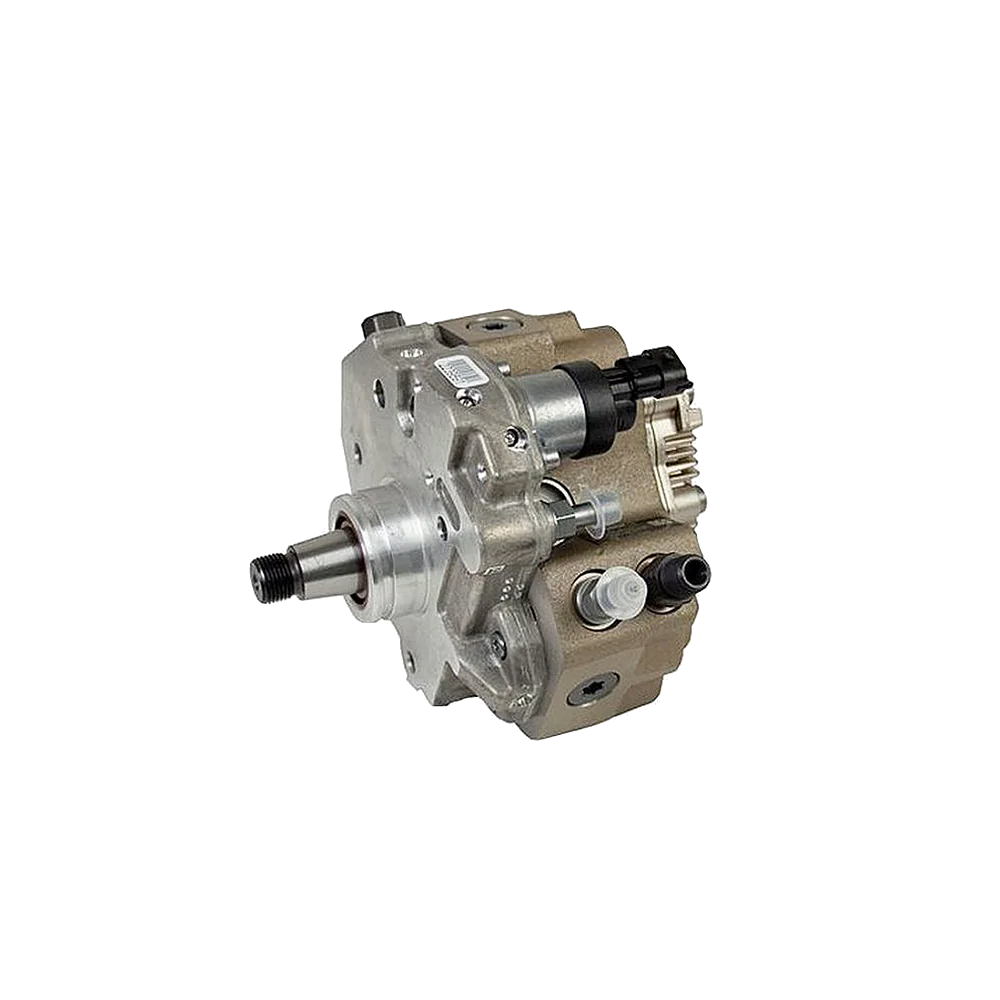

CP3 Injection Pump Failure: Symptoms Every Diesel Owner Should Know
Share
The CP3 injection pump is one of the most important parts of many common rail diesel fuel systems. Found on several Duramax and Cummins applications, the CP3 is responsible for supplying the high-pressure fuel needed for clean combustion, strong performance, and reliable starting.
When a CP3 pump starts to fail, the symptoms can show up in several different ways. Your truck may become hard to start, lose power, smoke more than normal, throw fuel rail pressure codes, or even go into limp mode. Because CP3 symptoms can overlap with injector problems, lift pump issues, fuel filter restriction, bad sensors, or air in the fuel system, proper diagnosis is important before replacing parts.
Below are the most common signs of CP3 injection pump failure and what diesel owners should check next.
What Does a CP3 Injection Pump Do?
The CP3 is a high-pressure fuel injection pump used in common rail diesel systems. Its job is to take fuel from the low-pressure side of the system and build the high pressure needed at the fuel rail. From there, the injectors use that pressurized fuel to deliver precise amounts of diesel into each cylinder.
In simple terms, the CP3 helps control how much fuel pressure the engine has available. If the pump cannot build or maintain proper pressure, the engine may not start, run correctly, or make the power it should.
A healthy CP3 pump is critical for:
- Easy starting
- Proper rail pressure
- Clean combustion
- Strong throttle response
- Towing performance
- Fuel economy
- Injector performance
When the CP3 gets weak, the entire fuel system can suffer.
1. Hard Starts or Long Cranking
One of the first signs of CP3 pump trouble is a hard start. Common rail diesel engines need enough rail pressure before the engine will fire. If the CP3 is weak or cannot build pressure quickly, the truck may crank longer than normal before starting.
You may notice:
- Extended crank time
- Starts better when warm
- Starts worse after sitting
- Intermittent no-start condition
- Long crank after fuel filter service
- Rough running immediately after startup
Hard starts can also be caused by weak batteries, air in the fuel system, fuel filter restriction, injector return flow, bad rail pressure sensors, or lift pump issues. Before replacing the CP3, the full fuel system should be checked.
2. Low Rail Pressure Codes
A failing CP3 may not be able to meet commanded rail pressure. When actual rail pressure falls below what the engine control module is requesting, the truck may store diagnostic trouble codes.
Common rail pressure-related issues may include:
- Low rail pressure codes
- Fuel pressure regulator codes
- Rail pressure too low during cranking
- Actual rail pressure lagging behind commanded pressure
- Limp mode under load
- Check engine light
Rail pressure codes do not automatically mean the CP3 pump is bad. They can also point to injector return flow problems, fuel supply restrictions, wiring issues, sensor failures, pressure relief valve problems, or fuel contamination. The code gives you a direction, not the whole answer.
3. Loss of Power Under Load
A weak CP3 pump may be able to keep up at idle or light throttle but fall behind when the engine is under load. This is common when towing, climbing hills, accelerating hard, or trying to maintain speed with a heavy trailer.
Symptoms may include:
- Reduced pulling power
- Truck feels weak under load
- Hesitation during acceleration
- Poor throttle response
- Power cuts out when towing
- Engine falls flat at higher RPM
If the CP3 cannot maintain rail pressure when demand increases, the engine may reduce power to protect itself. This can feel like the truck suddenly runs out of fuel or stops responding to throttle input.
4. Limp Mode
Many diesel trucks will enter limp mode when rail pressure drops too far from commanded pressure. Limp mode limits engine power to prevent damage and alert the driver that something is wrong.
Limp mode may happen:
- While towing
- During hard acceleration
- At highway speeds
- When climbing grades
- Under heavy throttle
- Intermittently at first
Limp mode can be frustrating because the truck may run normally again after cycling the key. However, if the underlying problem is a weak CP3, fuel restriction, or injector return issue, it will usually come back.
5. Rough Idle or Surging
A weak or inconsistent CP3 pump can cause unstable fuel rail pressure. When rail pressure fluctuates, the engine may idle rough, surge, or feel uneven.
You may notice:
- Idle hunting up and down
- Slight surging
- Rough idle
- Engine vibration
- Stumble at low speed
- Inconsistent throttle response
Rough idle can also come from bad injectors, fuel contamination, air in the fuel system, pressure regulator problems, or sensor issues. If rough idle is paired with rail pressure codes, the high-pressure fuel system should be inspected closely.
6. Engine Stalling
In more serious cases, CP3 failure can cause the engine to stall. If the pump cannot maintain enough pressure to keep the common rail system operating, the engine may shut off unexpectedly.
This may happen:
- At idle
- When shifting into gear
- Under acceleration
- While towing
- After the engine warms up
- During low-fuel-pressure events
Stalling can also be caused by electrical problems, fuel supply issues, bad sensors, or air intrusion. Because stalling can become a safety issue, it should be diagnosed as soon as possible.
7. No-Start Condition
If the CP3 pump fails badly enough, the engine may not start at all. The starter may crank normally, but the engine will not build the fuel rail pressure needed to fire.
A CP3-related no-start may include:
- Normal cranking speed
- Low or no rail pressure
- Fuel pressure codes
- No smoke from the exhaust while cranking
- Starts only with extended cranking at first
- Progresses from intermittent to complete no-start
Before condemning the CP3, verify fuel supply to the pump, fuel filter condition, injector return rates, rail pressure sensor readings, and pressure relief valve operation.
8. Increased Smoke
A CP3 pump problem can contribute to poor combustion if fuel pressure is unstable or too low. Depending on the failure and engine condition, the truck may smoke more than normal.
You may see:
- White smoke during startup
- Haze at idle
- Black smoke under load
- Raw fuel smell
- Smoke paired with rough running
- Smoke paired with power loss
Smoke can also be caused by bad injectors, air restriction, turbo problems, tuning, glow plug issues, or low compression. If smoke appears along with rail pressure problems, the fuel system needs to be checked as a whole.
9. Poor Fuel Economy
When rail pressure is not controlled properly, the engine may not burn fuel efficiently. A weak CP3 can contribute to poor fuel economy, especially if it causes rough running, smoke, or poor throttle response.
You may notice:
- Lower miles per gallon
- More frequent fill-ups
- Sluggish performance
- More smoke than normal
- Longer cranking
- Stronger diesel smell
Fuel economy can also be affected by driving habits, tire size, towing weight, air filter condition, boost leaks, fuel quality, and tuning. But a sudden drop in mileage with hard starts or rail pressure codes should not be ignored.
10. Metal Contamination in the Fuel System
One of the more serious signs of injection pump failure is metal contamination. If internal pump components wear or fail, metal debris can travel through the fuel system and damage other components.
Warning signs may include:
- Metallic debris in the fuel system
- Contaminated fuel filter
- Repeated injector failure
- Sudden severe fuel system problems
- Low rail pressure
- No-start condition
If metal contamination is found, the repair may involve more than replacing the CP3. Fuel lines, rails, injectors, filters, and related components may need to be inspected or replaced depending on the severity of contamination.
What Causes CP3 Injection Pump Failure?
CP3 pumps are generally known for durability, but they can still fail from wear, contamination, poor fuel supply, or system problems.
Common causes include:
- High mileage wear
- Dirty or contaminated diesel fuel
- Water in the fuel system
- Fuel filter neglect
- Air in the fuel system
- Low supply pressure
- Poor lubrication from low-quality fuel
- Internal pump wear
- Debris from previous fuel system failure
- Excessive demand from performance modifications
Like injectors, high-pressure pumps depend on clean fuel. Water, dirt, rust, and debris can shorten pump life and damage other fuel system components.
CP3 Failure vs. Injector Problems
CP3 failure and injector failure can create similar symptoms. Both can cause hard starts, low rail pressure, smoke, rough running, power loss, and no-start conditions.
A weak CP3 may not build enough rail pressure. A bad injector may leak off too much fuel and prevent the rail from holding pressure. Both problems can look alike without testing.
That is why diagnosis should include:
- Commanded versus actual rail pressure
- Fuel supply pressure
- Fuel filter inspection
- Injector return rate testing
- Pressure relief valve testing
- Fuel quality inspection
- Scan tool data under load
- Visual inspection for leaks or contamination
Guessing between a CP3 pump and injectors can get expensive fast.
What to Check Before Replacing a CP3 Pump
Before replacing the CP3, make sure the supporting fuel system has been checked. A weak lift pump, restricted filter, air leak, or excessive injector return flow can make a good CP3 look bad.
Recommended diagnostic steps include:
- Scan for diagnostic trouble codes.
- Compare commanded and actual rail pressure.
- Check rail pressure during cranking.
- Check rail pressure under load.
- Inspect and replace the fuel filter if needed.
- Verify fuel supply pressure to the CP3.
- Check for air in the fuel system.
- Perform injector return rate testing.
- Inspect the pressure relief valve.
- Check fuel quality for water, dirt, or metal.
- Inspect lines and fittings for restrictions or leaks.
A complete diagnosis helps prevent unnecessary pump replacement and protects the rest of the fuel system.
Can You Drive With a Failing CP3 Pump?
It depends on how bad the failure is. If the truck only has an occasional hard start or mild rail pressure issue, you may be able to drive it temporarily while scheduling repairs. However, if the truck is going into limp mode, stalling, losing power under load, or showing signs of metal contamination, it should be inspected as soon as possible.
Continuing to drive with a failing CP3 can lead to:
- No-start condition
- Injector damage
- Fuel rail contamination
- Poor drivability
- Stalling
- More expensive repairs
If metal contamination is suspected, avoid running the engine until the system has been inspected.
Parts You May Need for CP3 Pump Replacement
The exact parts needed depend on the truck, engine, and failure type. A simple pump replacement may require fewer parts than a contamination-related failure.
Common parts may include:
- CP3 injection pump
- Pump installation gasket or seal kit
- Fuel filter
- Fuel lines or fittings, if damaged
- Fuel pressure regulator, if applicable
- Pressure relief valve, if diagnosed
- Injectors, if damaged or contaminated
- Fuel rail components, if contamination is present
- Lift pump components, if supply pressure is low
Using the correct installation parts helps prevent leaks, repeat failures, and contamination of new components.
Final Thoughts
CP3 injection pump failure can cause hard starts, low rail pressure codes, loss of power, limp mode, rough idle, stalling, no-start conditions, smoke, poor fuel economy, and fuel system contamination. Because these symptoms can overlap with injector problems, lift pump issues, fuel filter restriction, air intrusion, and sensor failures, proper diagnosis is critical.
