10 Signs Your 5.9 Cummins Injectors Need Attention
Share
The 5.9 Cummins has earned its reputation as one of the most dependable diesel engines on the road. Whether you have a 12-valve, 24-valve, or common rail 5.9 Cummins, the injectors play a major role in how well the engine starts, idles, pulls, and burns fuel.
When injectors begin to wear out or fail, the symptoms can show up in several different ways. You may notice rough idle, smoke, hard starts, fuel economy loss, power loss, or even fuel getting into the oil. Some symptoms are minor at first, but injector problems can get expensive if they are ignored.
Below are 10 common signs that your 5.9 Cummins injectors may need attention.
1. Hard Starts or Long Cranking
A healthy 5.9 Cummins should start without excessive cranking when the batteries, fuel system, and grid heater are working properly. If your truck is taking longer than normal to fire, the injectors may be part of the problem.
Hard starts can be caused by injectors that are leaking, worn, returning too much fuel, or not spraying correctly. On common rail 5.9 engines, an injector with excessive return flow can make it difficult for the rail to build the pressure needed to start.
Possible signs include:
- Long crank time
- Starts better when warm
- Starts worse after sitting overnight
- White smoke during startup
- Rough running after startup
- Intermittent no-start condition
Hard starting can also be caused by weak batteries, air in the fuel system, fuel filter restriction, lift pump issues, grid heater problems, or low compression, so proper diagnosis matters.
2. Rough Idle
A rough idle is one of the most common signs of injector trouble. If one or more injectors are not delivering fuel evenly, the engine may shake, lope, or idle inconsistently.
You may notice:
- Engine vibration at idle
- Uneven idle sound
- Slight lope
- Shaking at stoplights
- Rough idle when cold
- Idle that gets worse over time
On a 5.9 Cummins, rough idle may also be caused by fuel pressure problems, poor fuel quality, air in the fuel system, valve lash issues, compression problems, or sensor issues. But injectors should be checked if the rough idle comes with smoke, hard starts, or poor fuel economy.
3. White Smoke From the Exhaust
White smoke usually means fuel is not burning completely. This can happen when an injector is leaking, sticking, dripping, or failing to atomize fuel correctly.
White smoke may show up:
- During cold starts
- At idle
- After the truck has been sitting
- With a raw diesel smell
- Along with rough running
- Until the engine warms up
Some white smoke during cold weather can happen for other reasons, including grid heater problems, low compression, poor fuel quality, or timing concerns on earlier engines. If the white smoke continues after the engine is warm, the injectors should be inspected.
4. Black Smoke Under Acceleration
Black smoke under load means the engine is getting more fuel than it can burn cleanly. A failing injector may overfuel, spray poorly, or dump fuel instead of producing a clean spray pattern.
Excessive black smoke can lead to:
- Poor fuel economy
- High exhaust gas temperatures
- Carbon buildup
- Sluggish throttle response
- Increased soot
- Poor overall performance
Black smoke can also be caused by boost leaks, dirty air filters, turbocharger problems, tuning, exhaust restrictions, or air intake problems. But if the truck suddenly starts smoking more than usual, injector health should be part of the diagnostic process.
5. Loss of Power
If your 5.9 Cummins does not pull like it used to, injector problems may be one possible cause. A weak injector can keep one cylinder from contributing properly, while a leaking or worn injector can hurt combustion efficiency.
Common complaints include:
- Slow acceleration
- Weak throttle response
- Poor towing performance
- Hesitation under load
- Truck feels lazy
- Reduced top-end power
Loss of power can also come from lift pump problems, clogged fuel filters, weak rail pressure, turbo issues, boost leaks, transmission problems, or sensor failures. If the power loss comes with smoke or rough running, check the injectors.
6. Poor Fuel Economy
Bad injectors can hurt fuel mileage by delivering too much fuel, leaking fuel when they should be closed, or failing to burn fuel efficiently.
You may notice:
- Lower miles per gallon
- More frequent fuel stops
- Strong fuel smell
- More smoke than usual
- Sluggish performance
- Engine running rougher than normal
Fuel mileage can also be affected by tire size, towing weight, driving habits, tuning, air filter condition, boost leaks, and fuel quality. But a sudden drop in mileage should not be ignored.
7. Fuel in the Oil
Fuel dilution is one of the more serious signs of injector trouble, especially on common rail 5.9 Cummins engines. If an injector leaks fuel into the cylinder, that fuel can wash past the piston rings and get into the crankcase.
Warning signs include:
- Rising oil level on the dipstick
- Oil that smells like diesel fuel
- Thin or watery oil
- Low oil pressure concerns
- Increased engine wear
Fuel-diluted oil can damage bearings, cylinder walls, camshaft components, and turbocharger parts. If the oil level is rising or the oil smells strongly like diesel, the truck should be inspected as soon as possible.
8. Engine Knock or Unusual Combustion Noise
A failing injector can cause a sharp knock, rattle, or unusual combustion noise. This may happen when fuel is delivered at the wrong time, in the wrong amount, or with a poor spray pattern.
Watch for:
- Sharp diesel knock
- Rattle that changes with RPM
- Knock paired with smoke
- Rough running with the noise
- Noise that seems cylinder-specific
Injector-related knock should be diagnosed quickly. A leaking or overfueling injector can cause poor combustion and may lead to piston damage if ignored.
9. Excessive Injector Return Flow
On common rail 5.9 Cummins engines, excessive injector return flow is a common diagnostic clue. If an injector is worn internally, it may return too much fuel instead of helping the rail maintain proper pressure.
Excessive return flow can cause:
- Hard starts
- Low rail pressure
- Rough running
- Poor performance
- Intermittent no-start
- Diagnostic trouble codes
Return flow testing can help confirm whether one or more injectors are failing instead of relying on symptoms alone.
10. Check Engine Light or Fuel System Codes
A check engine light can appear when the engine control module sees a problem with fuel pressure, injector performance, or cylinder contribution. Codes do not always point directly to a bad injector, but they can help guide diagnosis.
Possible clues may include:
- Fuel rail pressure codes
- Cylinder contribution codes
- Injector circuit codes
- Misfire-related symptoms
- Low rail pressure during cranking
- Poor commanded versus actual rail pressure
A scan tool can help narrow the problem down, but injector codes should always be checked alongside fuel pressure, fuel supply, wiring, and engine condition.
What Causes 5.9 Cummins Injector Problems?
Injector failure can happen from normal wear, fuel contamination, poor filtration, low fuel pressure, or poor maintenance. The exact failure points can vary depending on whether your engine is a 12-valve, 24-valve, or common rail 5.9.
Common causes include:
- High mileage wear
- Dirty or contaminated diesel fuel
- Water in the fuel system
- Poor fuel filtration
- Low lift pump pressure
- Air in the fuel system
- Lack of regular fuel filter changes
- Poor-quality replacement injectors
- Excessive return flow
- Incorrect tuning or overfueling
- Fuel system debris
Clean fuel is one of the most important factors in injector life. Even small amounts of debris or water can damage injector components over time.
Know Which 5.9 Cummins You Have
Not every 5.9 Cummins injector system is the same. Symptoms may be similar, but the diagnostic process can vary depending on the engine generation.
Common 5.9 Cummins injector systems include:
- 1989–1998 12-valve 5.9 Cummins: Mechanical injection system
- 1998.5–2002 24-valve 5.9 Cummins: VP44 injection pump system
- 2003–2007 5.9 Cummins common rail: High-pressure common rail system
For example, a hard-start issue on a common rail truck may involve injector return flow or rail pressure, while a hard-start issue on a VP44 truck may involve lift pump pressure, air intrusion, or injection pump health.
What to Check Before Replacing 5.9 Cummins Injectors
Before replacing injectors, check the basics. Many injector-like symptoms are caused by supporting system issues.
Recommended diagnostic steps include:
- Scan for diagnostic trouble codes.
- Check fuel filter condition.
- Inspect fuel quality for water or contamination.
- Verify lift pump pressure.
- Check for air in the fuel system.
- Test rail pressure on common rail engines.
- Perform injector return flow testing when applicable.
- Check valve lash if rough running is present.
- Inspect wiring and connectors.
- Check engine oil level and smell for fuel.
A full diagnosis helps prevent unnecessary parts replacement.
Should You Replace One Injector or the Full Set?
The best repair path depends on engine generation, mileage, test results, symptoms, and budget.
Replacing one injector may make sense if:
- One injector clearly failed testing
- The other injectors test well
- The truck has lower mileage
- The failure is isolated
- Budget is the main concern
Replacing the full set may be better if:
- Multiple injectors are worn
- The truck has high mileage
- Return flow is excessive across several injectors
- The truck has uneven performance across cylinders
- You want consistent fueling across the engine
On common rail engines, many owners choose to replace the full set when several injectors are weak because matching fuel delivery across all six cylinders can improve consistency and reduce repeat labor.
Parts You May Need for 5.9 Cummins Injector Replacement
The exact parts needed will depend on which 5.9 Cummins engine you have and what the diagnosis shows.
Common parts may include:

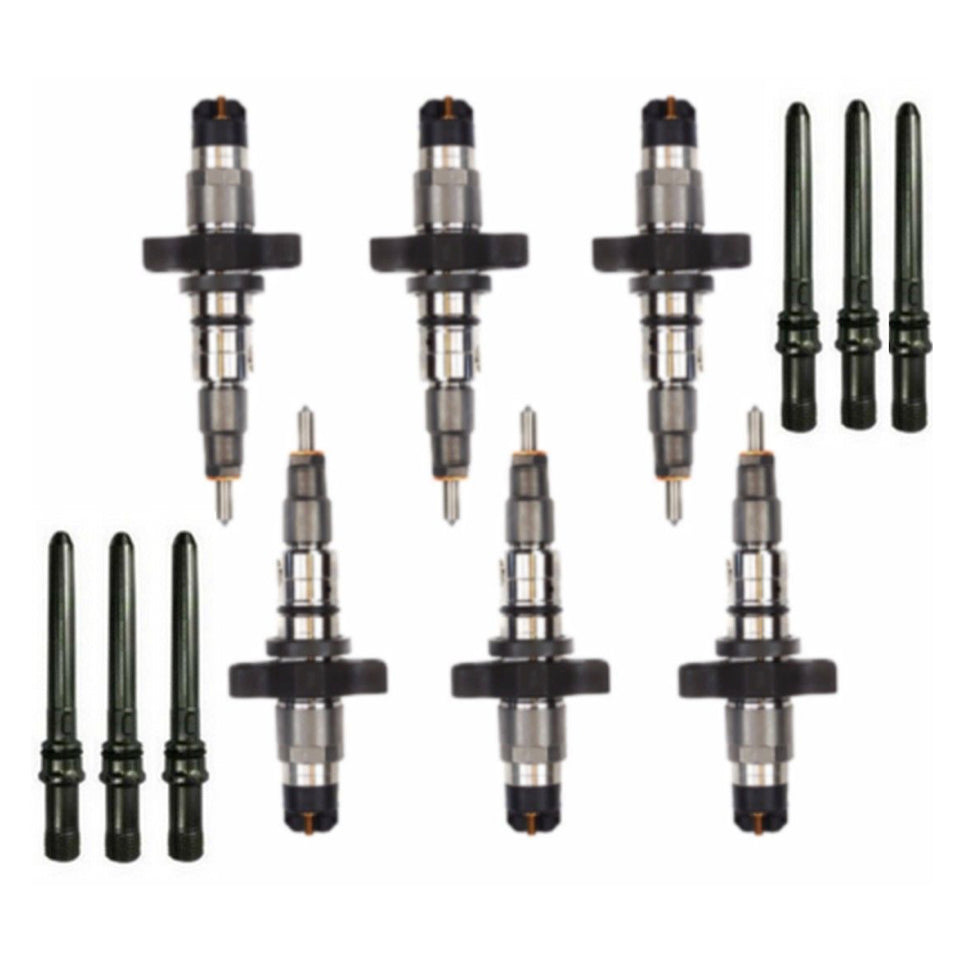

- 5.9 Cummins injectors
- Injector installation kit
- Injector connector tubes, when applicable
- Feed tubes, when applicable
- Fuel filter
- Lift pump components, if pressure is low
- Injector return line parts
- Valve cover gasket
- Engine oil and oil filter, especially if fuel dilution is present
- Fuel system cleaning components, if contamination is found
Replacing related seals and fuel system components can help prevent leaks and protect new injectors.
Final Thoughts
Bad 5.9 Cummins injectors can cause hard starts, rough idle, white smoke, black smoke, power loss, poor fuel economy, fuel in the oil, injector knock, excessive return flow, and fuel system codes. Since those symptoms can overlap with lift pump problems, fuel filter restriction, air intrusion, rail pressure issues, and engine wear, proper diagnosis is key.
