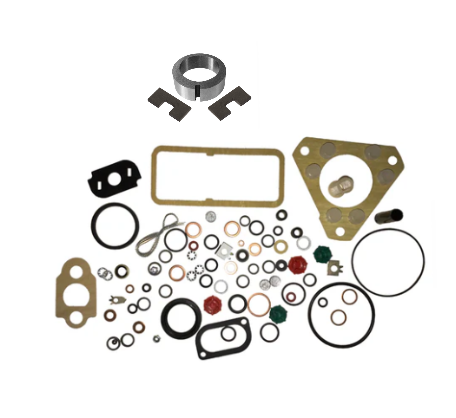

This complete repair kit for the CAV, DPA style pumps commonly used for Ford, Massey Ferguson, and John Deere applications includes the minor repair Refurbished kit (interchangeable part number 7135-110) and new internal transfer pump components.
Additional information for part number reference:
-
Repair kit is similar to 7135-110, DPA / CAV Injector Pump Repair Kit Gasket Seal For Ford Massey Ferguson 3000 4000 7600 John Deere Lucas Delphi Pump
-
The kit will fit any machines which have DPA pump fitted on the engine. This kit fits models Allis Chalmers, Case, David Brown, Ford, Long, Massey Ferguson, IH, IMT.
The internal transfer blades and liner can be replaced while the fuel pump is still installed on the tractor or engine. While most failures require the pump to be removed and fully repaired, we do see many instances of a worn transfer pump which can be replaced in the field. The following instructions are a simple 'how to' for DPA style pumps fitted for diesel applications from about 1970 to 1990.
1. Locate the injection pump and go to the rear of the pump (opposite the drive end).
2. As pictured above, remove the four screws and place the endplate to the side.

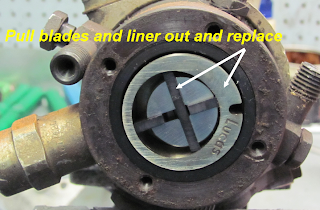

3. As pictured above, pull out the liner and blades and install the new parts. This will allow the injection pump to build pressure and in many instances this simple repair can solve poor performance, hard starting, or running rough.
If this repair solves your immediate problems, save your repair kit for a day you are able to remove the injection pump from the engine for proper, long-term maintenance.
All Diesel Care and Performance products carry a one year, unlimited mileage warranty. Diesel Care and Performance suggests fully reading and understanding the terms and conditions of our warranty policy prior to purchase and installation.
